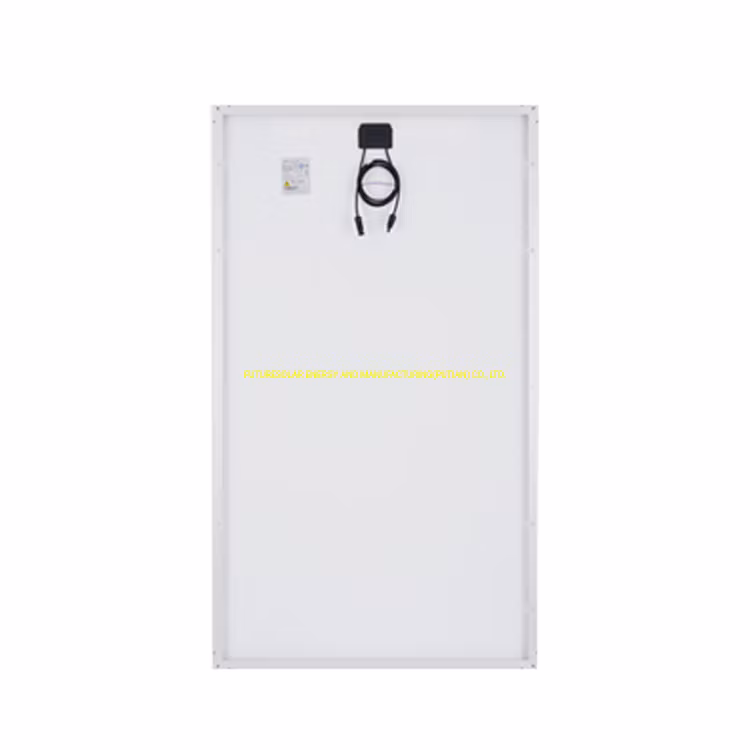

Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System

BIG SALE! China brand mono PERC Tier one PV solar module from FuturesolarHigh efficiency, high quality, save your energy, environmental solar panel Product DescriptionELECTRICAL CHARACTERISTICSModule TypeFSM340P-72FSM335P-72FSM330P-72FSM325P-72FSM320P-72Rated Maximum Power(Pmax) [W]340W335W330W325W320WOpen Circuit

Featured Products

BIG SALE! China brand mono PERC Tier one PV solar module from Futuresolar

High efficiency, high quality, save your energy, environmental solar panel


Product Description

ELECTRICAL CHARACTERISTICS
Module TypeFSM340P-72FSM335P-72FSM330P-72FSM325P-72FSM320P-72
Rated Maximum Power(Pmax) [W]340W335W330W325W320W
Open Circuit Voltage(Voc) [V]40.039.939.839.639.5
Short Circuit Current(Isc) [A]9.819.729.69.549.47
Maximum Power Voltage(Vmp) [V]32.632.432.232.031.9
Maximum Power Current(Imp) [A]9.529.429.319.229.1
Module Efficiency [%]19.09%18.78%18.48%18.17%17.86%
Weight 18.5kg
Numbers of cells6 × 10 mono/poly-crystalline solar cells
Cell dimension(mm)156.75*156.75/158.75*158.75
Dimensions(mm)1640*992*35mm
Standard test conditionIrradiance 1000W/m²,Module temperature 25ºC, AM=1.5
Junction BoxRated current ≥13A, IP ≥ 67, TUV&UL



Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System

Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System

Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar SystemJa /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System
Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System
Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System


Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System

FUTURESOLAR ENERGY AND MANUFACTURING(PUTIAN) CO., LTD. is a professional manufacturer and exporter that is concerned with the design, development and production of solar panel, specializes in manufacturing all types of solar panels and related products.  Our well-equipped facilities and excellent quality control throughout all stages of production enables us to satisfy customers' demand. Besides, we have received ISO9001 and CE satisfaction. All of our products are greatly appreciated in a variety of different markets throughout the world. Futuresolar will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us

Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System
Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System
Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System
Ja /Gcl/Trina/Canadian Top Brand 72cells 330W Poly Solar Panel for Solar Plant Solar System
