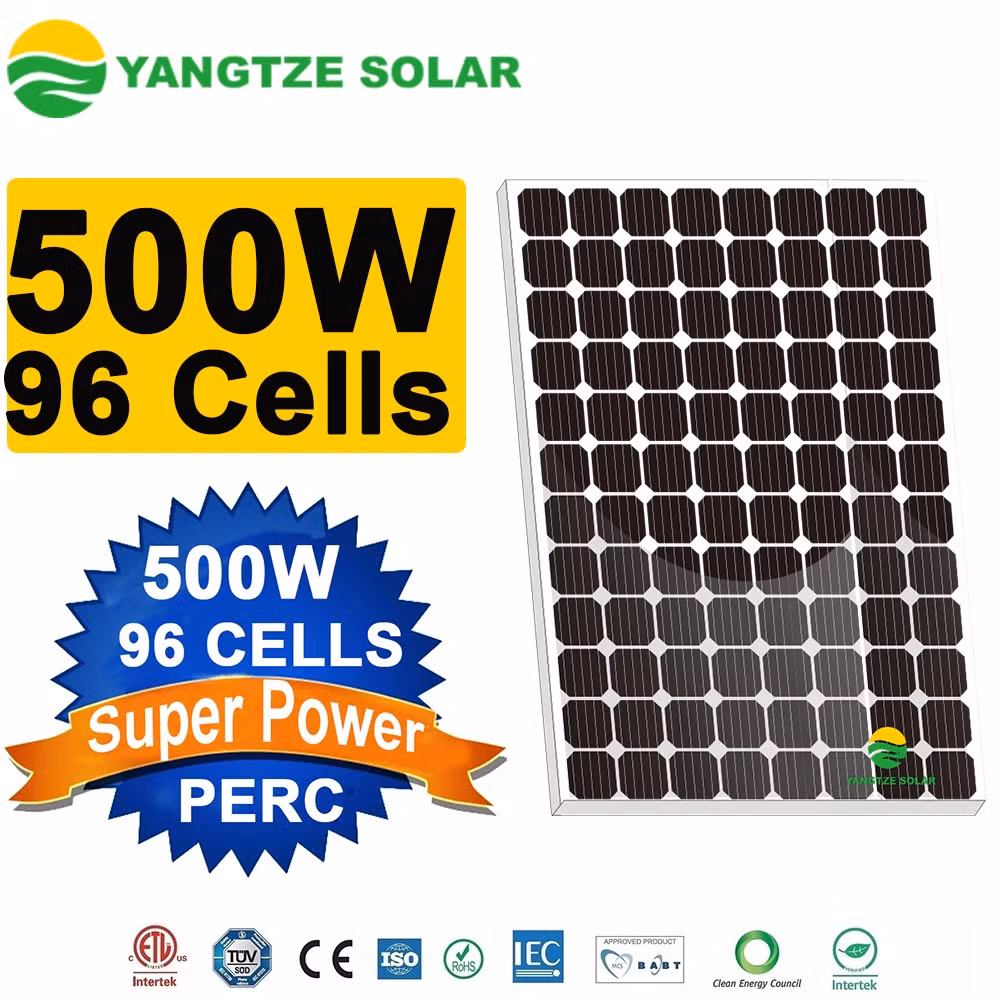

YS500M-96 | YS510M-96 | YS520M-96 | YS530M-96 | YS540M-96 | YS550M-96 |
500W | 510W | 520W | 530W | 540W | 550W |
48.40V | 48.58V | 48.76V | 48.94V | 49.12V | 49.30V |
10.33A | 10.51A | 10.69A | 10.88A | 11.06A | 11.24A |
58.08V | 58.30V | 58.52V | 58.73V | 57.95V | 59.16V |
10.54A | 10.72A | 10.90A | 11.09A | 11.28A | 11.46A |
19.51% | 19.90% | 20.35% | 20.68% | 21.07% | 21.46% |
0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||
Mechanical Parameters | |||||
Mono-crystalline 156x156mm (6inch) | |||||
96(8x12) | |||||
1956x1310x45mm | |||||
3.2mm, High Transmission, Low Iron, Tempered Glass | |||||
IP65&IP67 Rated | |||||
Section Size: 4mm² , Length: 900mm | |||||
Anodized Aluminum Alloy | |||||
3&6 | |||||
MC4 Compatible | |||||
Working Conditions | |||||
DC 1000V(IEC) / 1500V(IEC) / 600V(UL) | |||||
-40°c~+85°c | |||||
15A | |||||
45±2°c | |||||
Class A | |||||
Temperature Coefficient | |||||
-0.40%/°c | |||||
-0.30%/°c | |||||
+0.05%/°c |
♦ Founded in 1994 , 300MW solar panel production capacity ,solar panel power range 3watt to 360watt for both polycrystalline and monocrystalline solar panel
♦ 10 years total workmanship and materials warranty , 10 years for at least 90% and 25 years for 80% linear power output warranty
♦ 100% EL test before package and shipping

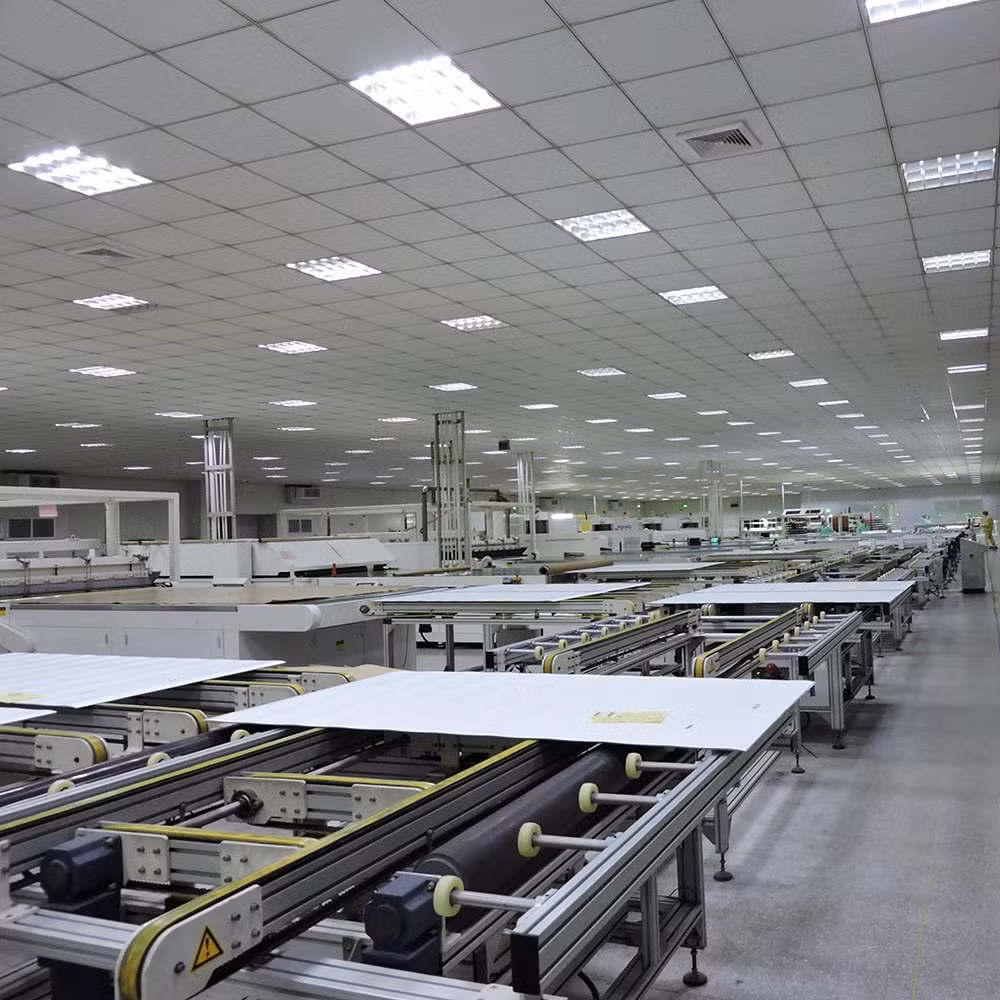

♦ Two factories , solar panel factory , battery factory
♦ Cooperated with world famous big companies like Trina Solar , Suntech Solar , Yingli Solar , HUAWEI
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) , UL(America) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
