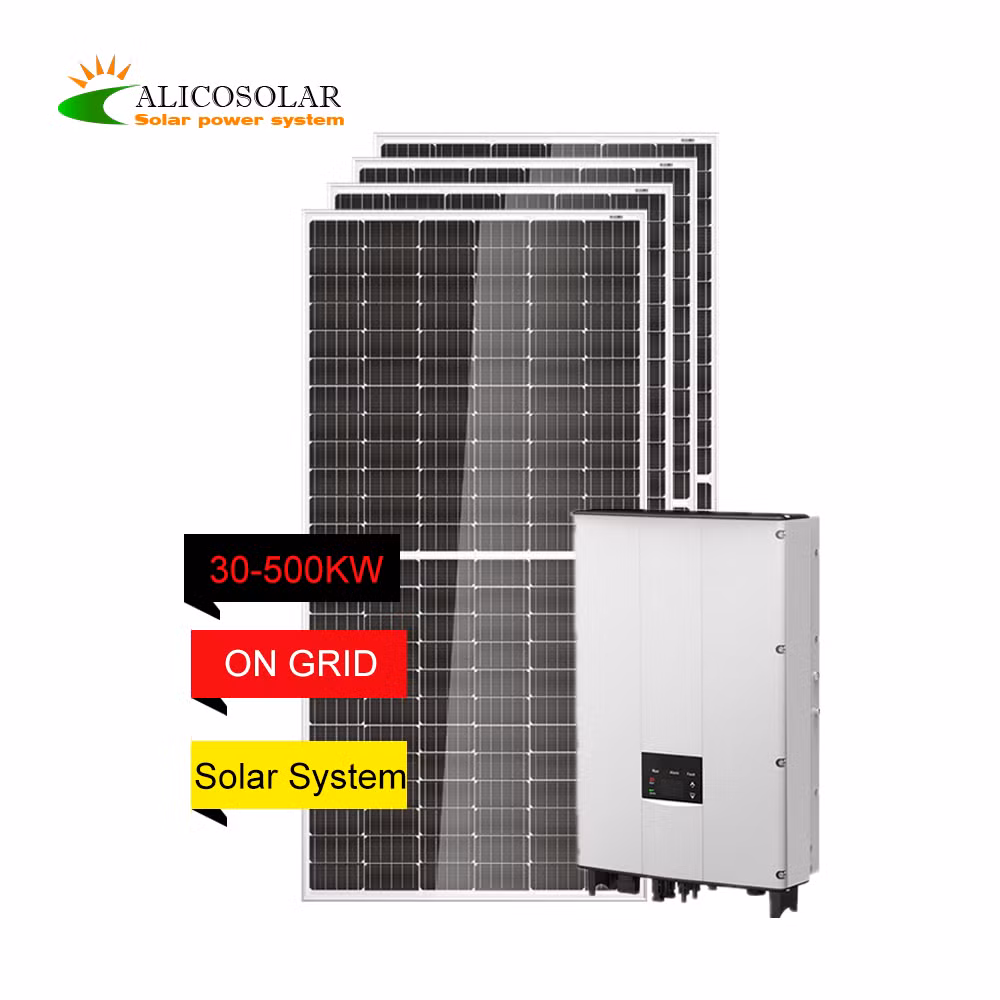

Name | 50KW On-grid Description | Quantity |
Solar Panel | Mono/Poly 460W 144 Cells PV Module | 104xPieces |
DC Disconnect Switch | IP66 1000VDC 16A | 0 Set |
On-Grid Inverter | MAX 50KTL3LV 230v/400v 3W+N+PE | 1 Set |
AC Disconnect Switch | IP 66 1000VDC 32A | 1 Set |
DC Cable | 4mm2 | 500 Meters |
MC4 Connector | 4mm2 1000VDC | 32 Pairs |
Mounting System | Standards Pitched Roof ( Customized Optional) | 1 Set |
PV Tools | Wire Cable Cutter & Stripper, Disassembly Tool | 1 Set |
1.Solar Panel | 2.On Grid Inverter | 3.Switch Box | 4.Power Meter |

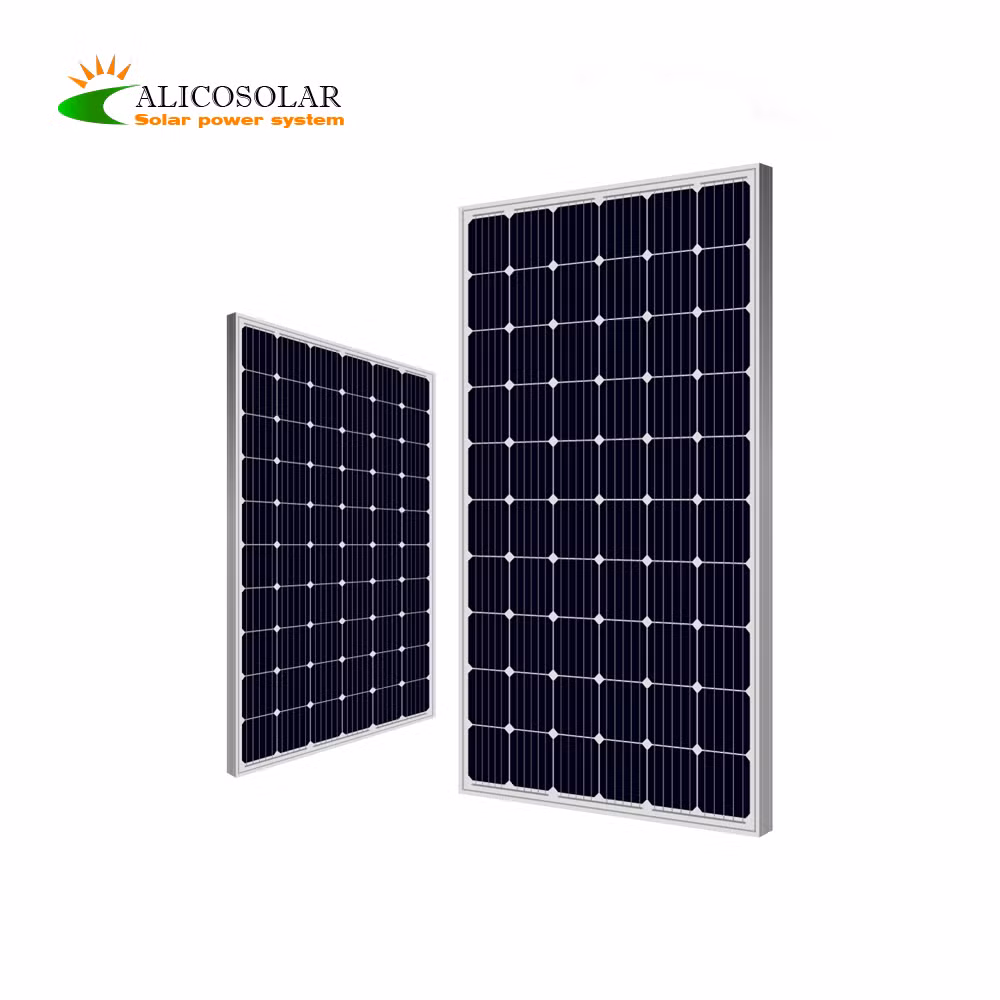

Mono Solar Panels
Peak Power Watts: 460W
Maximum Power Voltage: 41.7V
Maximum Power Current: 11.66A
Open Circuit Voltage: 49.5V
Short Circuit Current: 10.92A
Dimensions:2015×1002× 35mm
Weight:26kg (41.0 lb)
On-Grid Inverter MAX50KTL3LV
Max.DC Input Power: 65000W
Max. DCInput Voltage: 1000V
MPPT Voltage Range: 200-1000V
Rated Grid Voltage: 230V/-400V
Number of MPPT trackers/strings per MPPT tracker:6/2
Warranty: 5 Years /10 Years
Wifi Stick For STD, Lan & GPRS Optional.
Remote Monitoring System
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS.
App Available for PC, IOS & Andriod
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, China, Finished in Nov, 2015
20MW Ground Solar Plant in USA
50MW Solar Plant in Brazil
