| Model No. | | 156.75-5BB 4.52 | 156.75-5BB 4.55 | 156.75-5BB 4.57 | 156.75-5BB 4.59 | 156.75-5BB 4.62 | 156.75-5BB 4.64 | 156.75-5BB 4.67 |
|
|---|

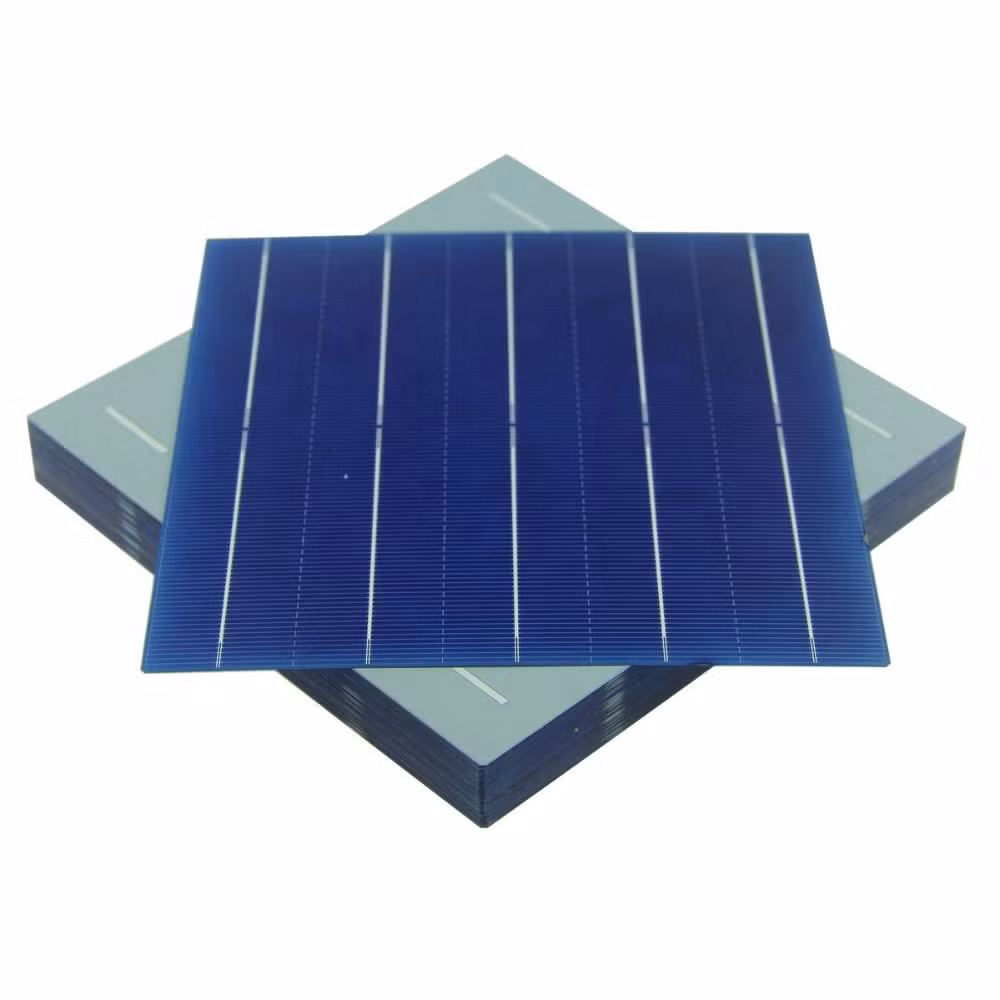

| Product Characteristics | |
|---|
| Cell Technology | Polycrystalline |
|---|
| Dimensions | 156.75×156.75 mm |
|---|
| Cell Thickness | 200 ± 15 µm |
|---|
| Front Surface (-) | |
|---|
| No. of Busbars | 5 |
|---|
| Busbar Width | 0.7 mm |
|---|
| Busbar Material | Silver |
|---|
| Anti Reflection Coating | Silicon nitride |
|---|
| Back Surface (+) | |
|---|
| No. of Soldering Pads | 5 |
|---|
| Soldering Pad Width | 2 mm |
|---|
| Soldering Pad Material | Silver |
|---|
| Back Surface Field (BSF) | Aluminium |
|---|
| Electrical Data at STC | |
|---|
| Maximum Power (Pmax) | | 4.52 W | 4.55 W | 4.57 W | 4.59 W | 4.62 W | 4.64 W | 4.67 W |
|
|---|
| Voltage at Maximum Power Point (Vmpp) | | 0.5371 V | 0.5395 V | 0.5389 V | 0.5422 V | 0.5443 V | 0.545 V | 0.5458 V |
|
|---|
| Current at Maximum Power Point (Impp) | | 8.417 A | 8.424 A | 8.48 A | 8.473 A | 8.487 A | 8.52 A | 8.552 A |
|
|---|
| Open Circuit Voltage (Voc) | | 0.6321 V | 0.6342 V | 0.6347 V | 0.637 V | 0.6387 V | 0.6399 V | 0.6407 V |
|
|---|
| Short Circuit Current (Isc) | | 8.911 A | 8.913 A | 8.975 A | 8.963 A | 8.977 A | 9.006 A | 9.032 A |
|
|---|
| Cell Efficiency | | 18.4-18.5 % | 18.5-18.6 % | 18.6-18.7 % | 18.7-18.8 % | 18.8-18.9 % | 18.9-19 % | 19-19.1 % |
|
|---|
| Fill Factor (FF) | | 80.26 % | 80.4 % | 80.22 % | 80.46 % | 80.57 % | 80.57 % |
|
|---|
